Webhooks

Use webhooks to get real-time updates.

ArcSite uses webhooks to notify your application when an event happens in your organization. Webhooks are particularly useful for asynchronous events such as a new drawing being created.

A webhook enables ArcSite to push real-time notifications to your app. ArcSite sends these notifications to your app as a JSON payload in an HTTP POST request. You can then use these notifications to execute actions in your backend systems.

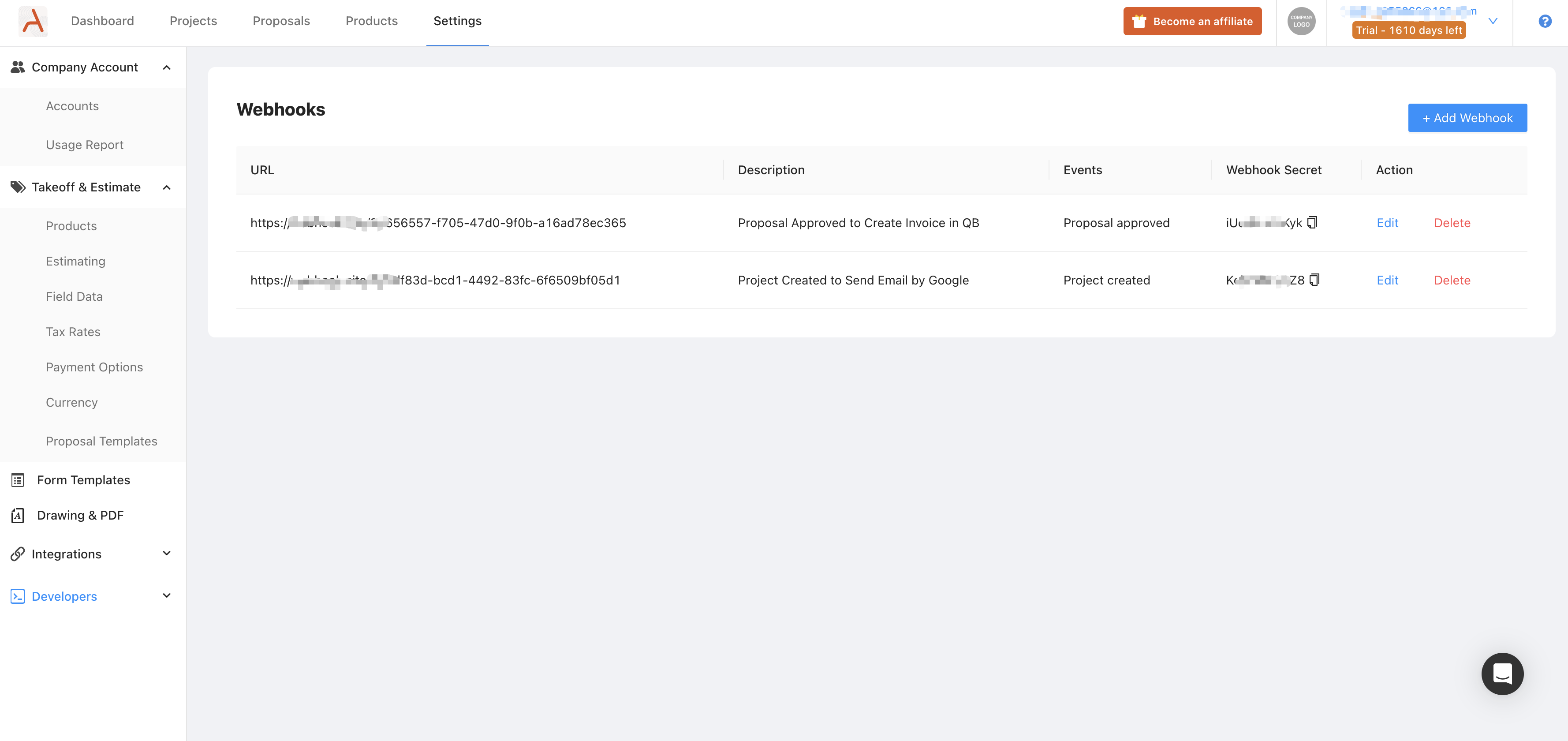

You can create and manage your webhooks in the ArcSite web app under Admin → Developers → Webhooks. Only organization owners and admins can manage webhooks.

Webhook URLs should use https:// (plain http:// is also accepted), can be at most 255 characters, and must resolve to a public internet address: private-network, loopback and link-local addresses are rejected. You can include basic-auth credentials in the URL (https://user:pass@example.com/hook).

Each webhook payload contains the event type and the payload data.

Event payload

{
  "event": "project.created",
  "data": {
    "id": "36029621652695040",
    "name": "project 4",
    "created_at": "2022-01-16T04:19:23.000000Z",
    "updated_at": "2022-01-16T04:19:23.000000Z",
    "archived": false,
    "job_number": "144111",
    "customer": {
      "name": "Jack",
      "phone": "1441",
      "second_phone": "1122",
      "email": "customer@example.com",
      "second_email": null,
      "address": {
        "street": "street",
        "city": "city",
        "county": "county",
        "state": "state",
        "zip_code": "300433"
      }
    },
    "work_site_address": null,
    "sales_rep": {
      "name": "Wang",
      "email": "sales@example.com",
      "phone": "122122-121"
    },
    "tags": ["tag1", "tag2"]
  }
}

Events

Event	Description
project.created	Triggered when a project is created.
project.updated	Triggered when a project’s own data is modified, such as renaming, descriptions, or tags.
drawing.created	Triggered when a drawing is created by uploading PDF files (on the web or with the Import PDF API) or uploading a new drawing.
drawing.updated	Triggered when a drawing is manually re-uploaded to the cloud after its initial creation.
proposal.signed	Triggered when a proposal is signed in the app. (Deprecated)
proposal.sent	Triggered when a proposal is sent to customer. (Deprecated)
proposal.approved	Triggered when a proposal is approved by customer. (Deprecated)
proposal.status_changed	Triggered when a proposal status changes.
proposal.viewed	Triggered the first time a customer opens an online proposal.
proposal.payment.received	Triggered when a payment is successfully received for a proposal.
app_export_proposal.prompted	Triggered after a proposal PDF is exported in the ArcSite App and the user answers the push prompt. Available only when your organization is connected to a supported integration; see Integrations.

Delivery and retries

ArcSite sends each event as an HTTP POST with Content-Type: application/json. A delivery succeeds when your endpoint returns a 2xx response status code within 30 seconds (the connection must be accepted within 5 seconds). Any other result, such as a non-2xx status code, a timeout or a connection error, counts as a failure, and ArcSite retries the event.

ArcSite follows up to 5 redirects (301, 302, 303, 307, 308), as long as every hop resolves to a public internet address. After a 307 or 308 it repeats the POST with the same body; after a 301, 302 or 303 it follows with a GET without a body. The response at the end of the redirects decides whether the delivery succeeded.

ArcSite makes up to 7 attempts per event: the first delivery and 6 retries, sent 15 seconds, 30 seconds, 3 minutes, 10 minutes, 20 minutes and 30 minutes after the previous failed attempt. If the last attempt fails, about 64 minutes after the first, ArcSite stops retrying the event. If your endpoint responds with 410 Gone, ArcSite stops retrying that event right away. The webhook itself stays enabled.

Every retry sends the same request body as the first attempt. The body holds the data as it was when ArcSite generated the payload, shortly after the event, so it can already include changes made after the event. The ArcSite-Signature header has a new timestamp and signature on each attempt.

Note

Webhooks are delivered at least once, so your endpoint can receive the same event more than once, for example when it takes longer than 30 seconds to respond. Events can also arrive out of order. Deliveries do not carry a unique delivery ID, so make sure your handler can safely process the same event twice.

Secure your endpoint

We highly recommend you secure your integration by ensuring your handler verifies that all webhook request are generated by ArcSite.

The following section describes how to verify webhook signatures:

• Retrieve your endpoint’s secret.
• Verify the signature.

Retrieving your endpoint’s secret

Use the ArcSite Webhooks web UI to get the webhook secret. ArcSite generates a unique secret key for each webhook.

Sample webhook header

{
  "ArcSite-Signature": "t=1716975491,v=5f43f28c3d33c34b18634399a8e3bb69dcfb9f146cea562289306d783187d0f1"
}

Verifying the signature

To verify the signature, you need to compare the signature in the header of the incoming webhook request with the signature using the secret and the request body. The ArcSite-Signature header included in each signed event contains a timestamp and signature that you must verify. The timestamp is prefixed by t=, and the signature is prefixed by a v=.

import hmac
import hashlib
from django.http import HttpResponse
from django.views.decorators.csrf import csrf_exempt


SECRET = 'your_webhook_secret'


def verify_webhook(header, payload, secret):
    if not header:
        return False
    # Extract timestamp and signature
    elements = dict(item.split('=', 1) for item in header.split(','))
    timestamp, signature = elements['t'], elements['v']
    # Prepare signed payload string
    signed_payload = f"{timestamp}.{payload}"
    # Compute expected signature
    expected_signature = hmac.new(secret.encode(), signed_payload.encode(), hashlib.sha256).hexdigest()
    # Verify signature
    return hmac.compare_digest(signature, expected_signature)


# Django Example
@csrf_exempt
def webhook_handler(request):
    if request.method == 'POST':
        header = request.headers.get('ArcSite-Signature')
        payload = request.body.decode('utf-8')
        if not verify_webhook(header, payload, SECRET):
            return HttpResponse('Invalid signature or timestamp.', status=400)
        # TODO Process the valid webhook payload here
        return HttpResponse('Webhook received successfully.', status=200)
    return HttpResponse('Method not allowed.', status=405)

Step 1: Extract the timestamp and signature from the header

Split the header using the , character as the separator to get a list of elements. Then split each element using the = character as the separator to get a prefix and value pair. The value for the prefix t corresponds to the timestamp and the prefix v to the signature. You can discard all other elements.

Step 2: Prepare the signed_payload string

The signed_payload string is created by concatenating:

• The timestamp (as a string)
• The character .
• The actual JSON payload (that is, the request body)

Step 3: Determine the expected signature

Compute an HMAC with the SHA256 hash function. Use the webhook’s secret as the key, and use the signed_payload string as the message.

Step 4: Compare the signature

Compare the signature in the header to the expected signature.

const express = require("express");
const crypto = require("crypto");

const app = express();
const SECRET = "your_webhook_secret";

app.use(express.raw({ type: "*/*" }));

function verifyWebhook(header, payload, secret) {
  // Extract timestamp and signature
  const elements = header.split(",").reduce((acc, element) => {
    const [key, value] = element.split("=");
    acc[key] = value;
    return acc;
  }, {});
  const signature = elements["v"];
  // Prepare signed payload string
  const signedPayload = `${elements["t"]}.${payload}`;
  // Compute expected signature
  const expectedSignature = crypto
    .createHmac("sha256", secret)
    .update(signedPayload)
    .digest("hex");
  // Verify signature
  if (!signature || signature.length !== expectedSignature.length) {
    return false;
  }
  return crypto.timingSafeEqual(
    Buffer.from(signature),
    Buffer.from(expectedSignature),
  );
}

app.post("/webhook", (req, res) => {
  const header = req.headers["arcsite-signature"];
  const payload = req.body.toString("utf-8");
  if (!verifyWebhook(header, payload, SECRET)) {
    return res.status(400).send("Invalid signature.");
  }
  // TODO Process the valid webhook payload here
  res.status(200).send("Webhook received successfully.");
});

app.listen(3000, () => {
  console.log(`Server is running on port 3000`);
});

Project Created

project.created Triggered when a project is created.

Project Created Webhook Payload

Parameter	Type	Description
id	String	ID of the project
name	String	Name of the project
created_at	String	Creation time (ISO 8601, UTC, e.g. 2022-01-16T04:19:23.000000Z)
updated_at	String	Last update time (ISO 8601, UTC)
archived	Boolean	Whether the project is archived
customer	Customer | null	Customer profile of the project
job_number	String | null	Job number of the project
work_site_address	Address | null	Worksite address of the project
sales_rep	SalesRep | null	Sales Representative of the project
tags	List[String]	Tags attached to the project

Project Updated

project.updated Triggered when a project’s own data is modified, including:

• Renaming the project, or updating its description / display name / client profile.
• Adding or removing a tag on the project, or removing a tag definition that was attached to the project.

It is sent for every successful update request, even one that changes nothing. Archiving or unarchiving a project does not trigger it.

Project Updated Webhook Payload

The payload schema matches project.created, with the additional source field.

Parameter	Type	Description
id	String	ID of the project
name	String	Name of the project
created_at	String	Creation time (ISO 8601, UTC, e.g. 2022-01-16T04:19:23.000000Z)
updated_at	String	Last update time (ISO 8601, UTC)
archived	Boolean	Whether the project is archived
customer	Customer | null	Customer profile of the project
job_number	String | null	Job number of the project
work_site_address	Address | null	Worksite address of the project
sales_rep	SalesRep | null	Sales Representative of the project
tags	List[String]	Tags attached to the project
source	String | null	Origin of the update: app for the ArcSite App, web for the ArcSite web UI, open_api for the ArcSite Open API, or null when unavailable (such as a system-initiated update)

Note

The source field is available only on project.updated webhook payloads. Other webhook event payloads are unchanged.

Drawing Created

The drawing.created webhook will be triggered when a drawing is created by uploading PDF files on the user site or with the Import PDF API, or by manually uploading some newly created drawing to the cloud from the ArcSite App.

Note

The returned pdf_url or png_url will expire 24 hours after ArcSite generates the payload. They are not permanent links and should not be used in your system directly. You need to download the files from the urls for your future use.

For drawing created from the user site by uploading PDF files, the png_url will be an empty string (""). pdf_url and dxf_url are null when the drawing has no PDF or DXF file.

Drawing Created Webhook Payload

Parameter	Type	Description
id	String	ID of the drawing
project_id	String	Project ID of the drawing
name	String	Name of the drawing
pdf_url	String | null	Download address of PDF format of the drawing
png_url	String	Download address of PNG format of the drawing (empty string if there is none)
dxf_url	String | null	Download address of DXF format of the drawing
tags	List[String]	Tags added to this drawing

Drawing Updated

The drawing.updated webhook is triggered whenever a drawing is manually re-uploaded to the cloud from the ArcSite App after its initial creation.

Note

The returned pdf_url or png_url will expire 24 hours after ArcSite generates the payload. They are not permanent links and should not be used in your system directly. You need to download the files from the urls for your future use.

Drawing Updated Webhook Payload

Parameter	Type	Description
id	String	ID of the drawing
project_id	String	Project ID of the drawing
name	String	Name of the drawing
pdf_url	String | null	Download address of PDF format of the drawing
png_url	String	Download address of PNG format of the drawing (empty string if there is none)
dxf_url	String | null	Download address of DXF format of the drawing
tags	List[String]	Tags added to this drawing

Proposal PDF Signed(Deprecated)

proposal.signed Triggered when a proposal is signed in the app.

Note

The returned url will expire 24 hours after ArcSite generates the payload. It’s not a permanent link and should not be used in your system directly. You need to download the file from the url for your future use.

Proposal PDF signed Webhook Payload

Parameter	Type	Description
project_id	String	Project ID of the drawing
name	String	File name of the signed document
url	String	Download address of the signed pdf
drawing_id	String	The associated drawing id of the signed pdf
drawing_version_id	String	The associated drawing version id of the signed pdf

Proposal Sent(Deprecated)

proposal.sent Triggered when a proposal is sent to customer.

Note

A proposal option is associated with a specific drawing version in Arcsite. If you need to get the line items data of the specified drawing version, you can use the drawing_version_id of the option in the Get line items API.

Note

The returned url in proposal options will expire 24 hours after ArcSite generates the payload. It’s not a permanent link and should not be used in your system directly. You need to download the file from the url for your future use.

Proposal Sent Webhook Payload

Parameter	Type	Description
project_id	String	Approved proposal related project ID
proposal_id	String	Proposal ID
name	String	Proposal name
customer_name	String	Proposal customer name
contact_email	String	The sales email
sales_representative	String	The sales name
proposal_options	List[ProposalOption]	The proposal option data list

ProposalOption

Parameter	Type	Description
id	String	Proposal option ID
name	String	Proposal option name
drawing_id	String	The proposal option associated drawing ID
drawing_version_id	String	The proposal option associated drawing version ID
total	Number	The total of the proposal option
pdf_url	String	Download address of the proposal option pdf file

Proposal Approved(Deprecated)

proposal.approved Triggered when a proposal is approved by customer.

Proposal Approved Webhook Payload

Parameter	Type	Description
project_id	String	Approved proposal related project ID
proposal_id	String	Proposal ID
name	String	Proposal name
customer_name	String	Proposal customer name
contact_email	String	The sales email
sales_representative	String	The sales name
customer_email	String | null	Proposal customer email
customer_address	Address	Customer address of the project
approved_option	ApprovedProposalOption	Approved proposal option data
initial_proposal_id	String	(optional) ID of the first proposal in the change-order chain

ApprovedProposalOption

Parameter	Type	Description
name	String	Approved proposal option name
drawing_id	String	Associated drawing ID
drawing_version_id	String	Associated drawing version ID
total	Number	Total amount of the approved option
pdf_url	String	Download address of the approved proposal PDF

The deprecated proposal.approved event does not include an option id in approved_option. The pdf_url expires 24 hours after ArcSite generates the payload.

Proposal Status Changed

proposal.status_changed Triggered when a proposal status changes.

It isn’t sent for status changes caused by payments (use proposal.payment.received), when the customer e-signs a proposal that still needs the sales representative’s signature, or when an expired proposal is reopened by setting a new expiration date.

Proposal Status Change Webhook Payload

Parameter	Type	Description
proposal_id	String	Proposal ID
project_id	String	Proposal related project ID
name	String	Proposal name
status	String	Proposal status. See the enum below.
sales_representative	String	The sales name
contact_email	String	The sales email
customer_name	String	Proposal customer name
customer_email	String | null	Proposal customer email
document_number	String	(optional) Proposal document number
close_note	String	(optional) Note explaining why proposal was closed (Only present when status is VOID or LOST)
total	Number	(optional) The total of the proposal (Only present when status is APPROVED, PARTIALLY_PAID, PAID or OVER_PAID). For a change order, this is the full revised amount; see Change Orders
pdf_url	String	(optional) Download link to the proposal PDF file. Only present when status is APPROVED, PARTIALLY_PAID, PAID or OVER_PAID. Contains the signed version if the proposal has been signed. Expires 24 hours after ArcSite generates the payload
approved_option	Object	(optional) Contains drawing_id (String); online approvals also include id (String) and drawing_version_id (String). Only present when status is APPROVED, PARTIALLY_PAID, PAID or OVER_PAID
initial_proposal_id	String	(optional) ID of the first proposal in the change-order chain. Present on every proposal in a chain, including the original proposal, where it equals proposal_id
proposal_options	List[ProposalOption]	(optional) Full list of proposal options for online proposals. Included whenever proposal status changes.
template_id	String | null	The ID of the template used to create the proposal. Returns null when the proposal is signed in app.

Note

The status field is an enum with the following values:

• `DRAFT`: When a new proposal is created
• `PENDING`: When a proposal is sent to the customer
• `VOID`: When a proposal is marked as void
• `LOST`: When a proposal is marked as lost
• `APPROVED`: When a proposal is approved or e-signed, online or in the app
• `EXPIRED`: When a sent proposal passes its expiration date without being approved
• `PARTIALLY_PAID`, `PAID`, `OVER_PAID`: When a change order is approved on a proposal that already has payments recorded

Proposal Viewed

proposal.viewed Triggered the first time a customer opens an online proposal.

Sent once per proposal, on the first open only — later opens do not re-trigger it. Use it to advance a deal stage or queue follow-up while the customer is still looking at the bid. Sales previews and sign-in-person sessions do not trigger this event, and a proposal that was signed in person does not send it later.

Note

A change order is a separate proposal, so opening one sends its own proposal.viewed with the same project_id but a different proposal_id. Key your automation off proposal_id, and use initial_proposal_id to tie the change order back to the original proposal.

Example

{
  "event": "proposal.viewed",
  "data": {
    "proposal_id": "1234567890",
    "project_id": "9876543210",
    "name": "Backyard Fence",
    "viewed_at": "2026-07-30T10:00:00.123456Z",
    "status": "PENDING",
    "sales_representative": "Jane Smith",
    "contact_email": "jane@example.com",
    "customer_name": "John Doe",
    "customer_email": "john@example.com",
    "document_number": "P-0001",
    "template_id": "2468013579"
  }
}

Proposal Viewed Webhook Payload

Parameter	Type	Description
proposal_id	String	Proposal ID
project_id	String	Proposal related project ID
name	String	Proposal name
viewed_at	String	When the customer first opened the proposal (ISO 8601, UTC)
status	String	Proposal status when the webhook payload is generated; it may have changed since the first view
sales_representative	String	The sales name
contact_email	String	The sales email
customer_name	String	Proposal customer name
customer_email	String | null	Proposal customer email
document_number	String	(optional) Proposal document number
initial_proposal_id	String	(optional) ID of the first proposal in the change-order chain. Present on every proposal in a chain, including the original proposal, where it equals proposal_id
template_id	String	The ID of the template used to create the online proposal.

close_note, total, pdf_url and approved_option are also included under the same conditions as in proposal.status_changed.

Proposal Payment Received

proposal.payment.received Triggered when a payment is successfully received for a proposal.

This webhook fires for both ArcSite Payment and Mark as Paid (manual payment recording). The webhook is triggered once per payment transaction.

ArcSite Payment Example

{
  "event": "proposal.payment.received",
  "data": {
    "proposal_id": "12345",
    "paid_amount": 5000.0,
    "pay_channel": "arcsite_payment",
    "paid_time": "2025-11-06T10:30:00",
    "drawing_id": "22444",
    "payment_method": "Credit Card"
  }
}

Mark as Paid Example (manual payment recording)

{
  "event": "proposal.payment.received",
  "data": {
    "proposal_id": "12345",
    "paid_amount": 2500.0,
    "pay_channel": "mark_as_paid",
    "paid_date": "2025-11-06",
    "drawing_id": "22444",
    "payment_method": "Check"
  }
}

Proposal Payment Received Webhook Payload

Parameter	Type	Description
proposal_id	String	ID of the proposal that received the payment
drawing_id	String	The approved drawing id of the proposal
paid_amount	Number	Amount of this specific payment (not cumulative). Decimal with 2 decimal places
pay_channel	String	Payment channel identifier: arcsite_payment (online payment) or mark_as_paid (manual recording)
paid_time	String	(conditional) Timestamp (UTC) when payment was received, in ISO 8601 format without a timezone designator (e.g. 2025-11-06T10:30:00). Only present when pay_channel is arcsite_payment
paid_date	String	(conditional) Date when payment was recorded. Only present when pay_channel is mark_as_paid. ISO 8601 date
payment_method	String	Payment method: Credit Card, ACH, Check, Cash, Wire or Other

Note

The time field in the payload depends on the pay_channel:

• When `pay_channel` is `arcsite_payment`, the `paid_time` field contains the precise datetime of payment in ISO 8601 format
• When `pay_channel` is `mark_as_paid`, the `paid_date` field contains only the date (no time component) in ISO 8601 format

Check the `pay_channel` field to determine which time field to use.

Note

Important Notes:

• The `paid_amount` represents the amount of this specific payment, not the cumulative total paid for the proposal
• If a proposal has multiple payments, you will receive a separate webhook for each payment
