Product Items

You can get product items from a drawing with the following APIs.

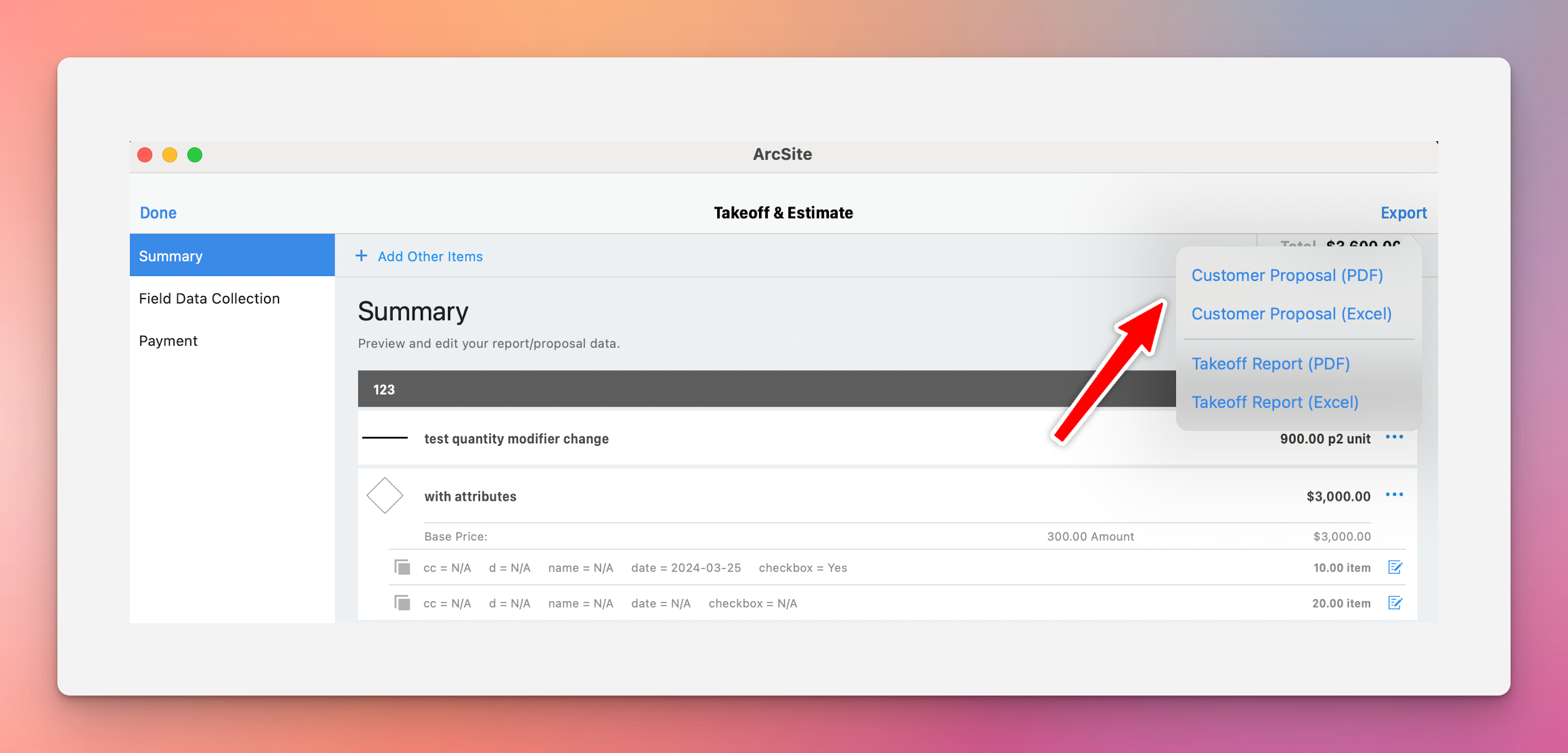

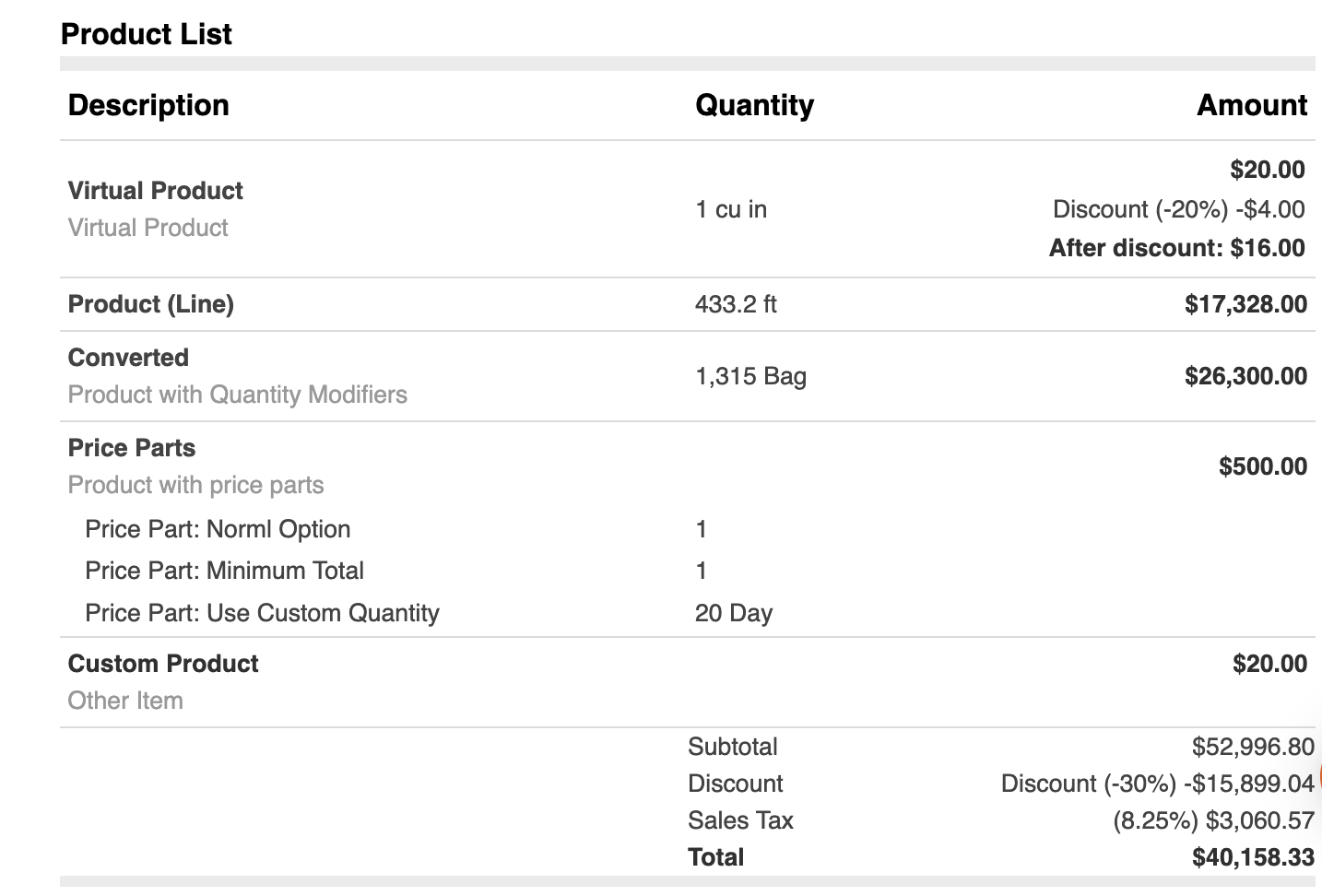

• Proposal Items: Product items can be fetched in the way that we generate Product List of Proposal PDF.

• Excluded Items: Product items that are marked as not included in the proposal.

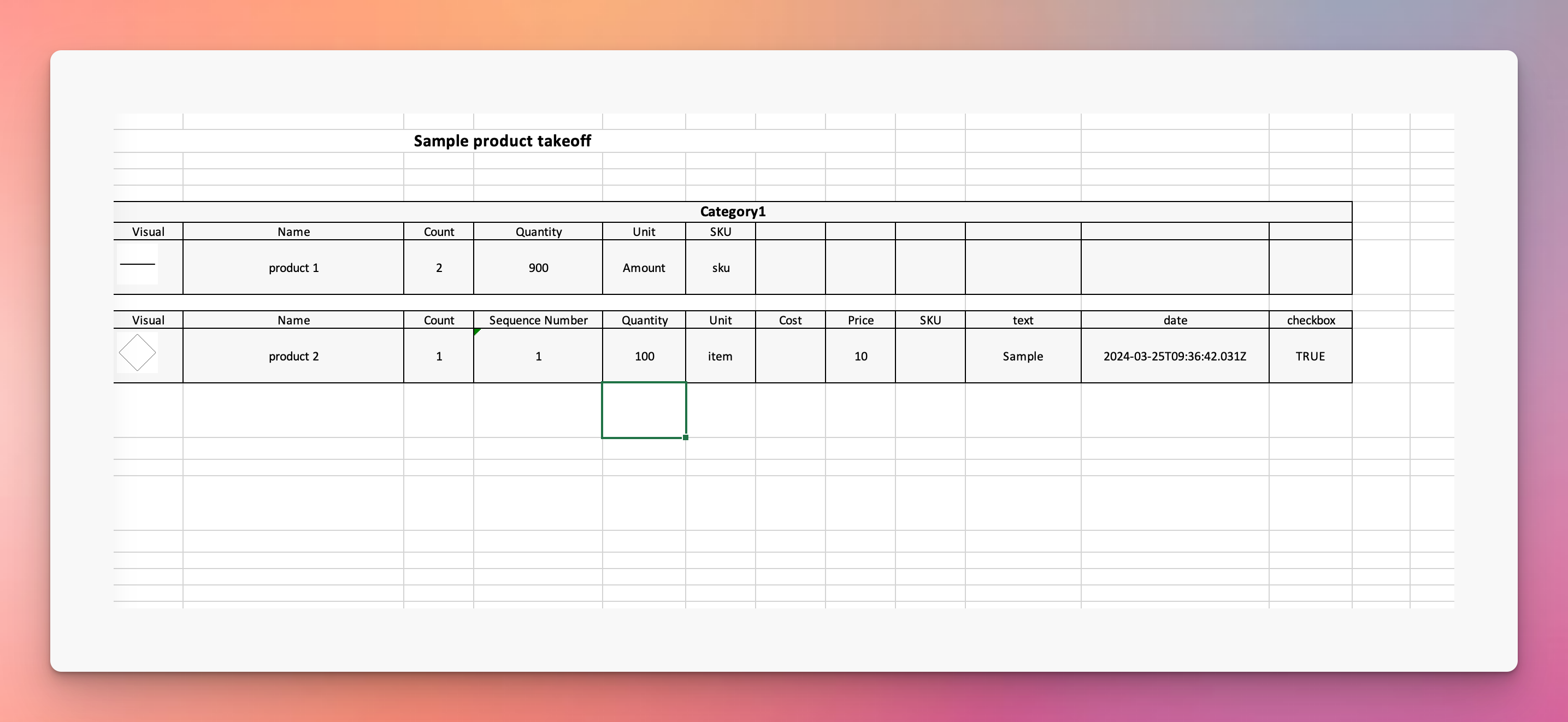

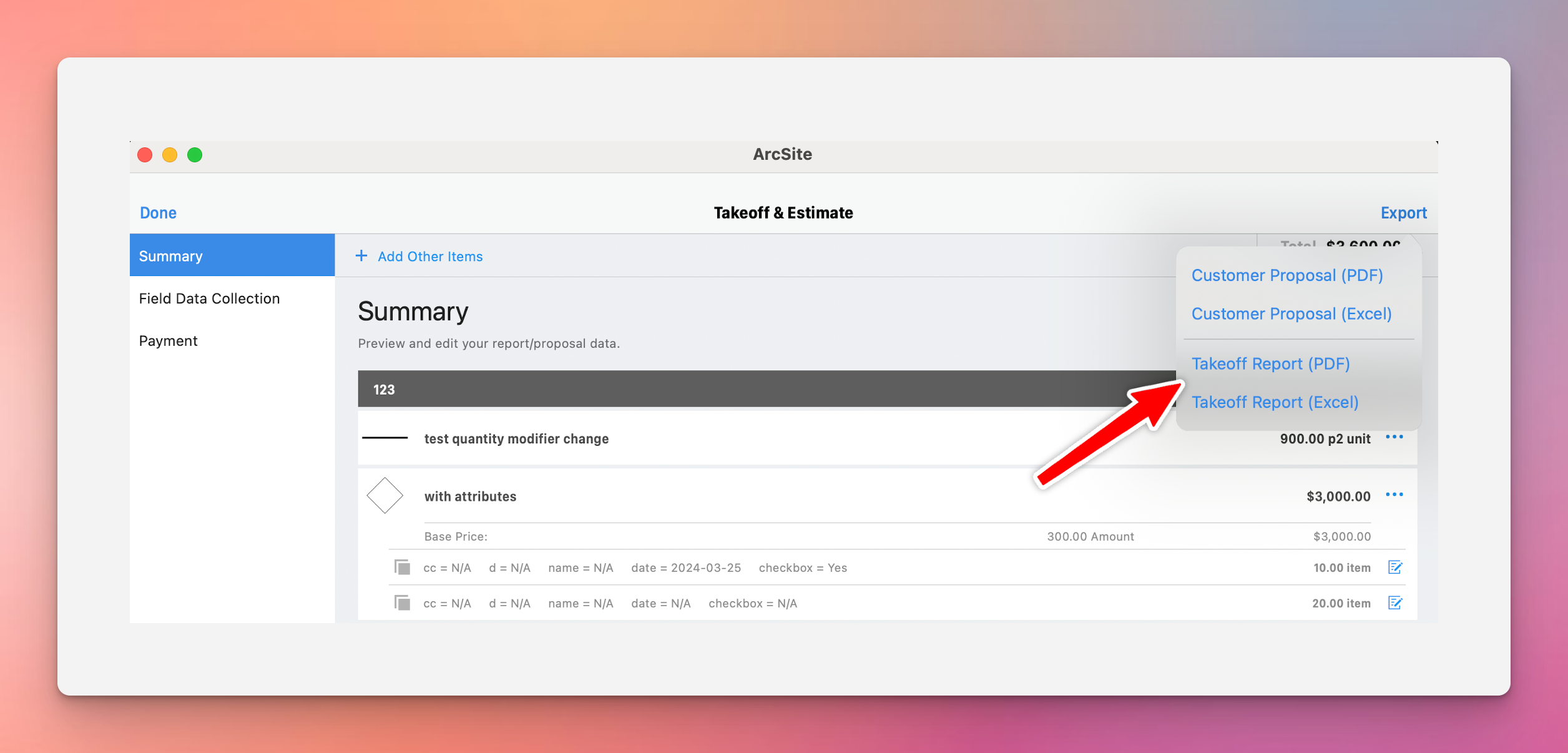

• Takeoff Items: Product items can be fetched in the way that we generate Takeoff report in Excel format.

Get Proposal Line items

Get line items by drawing id.

GET https://api.arcsite.com/v1/drawings/<id>/line_items

cURL

curl "https://api.arcsite.com/v1/drawings/<ID>/line_items" \
  -H "Authorization: Bearer your_api_token_here"

JavaScript

const response = await fetch("https://api.arcsite.com/v1/drawings/<ID>/line_items", {
  headers: {
    Authorization: "Bearer your_api_token_here",
  },
});
const data = await response.json();

Python

import requests

response = requests.get(
    "https://api.arcsite.com/v1/drawings/<ID>/line_items",
    headers={"Authorization": "Bearer your_api_token_here"},
)
data = response.json()

Response

{
  "line_items": [
    {
      "name": "product1",
      "description": "Product 1 description",
      "quantity": 2.26,
      "total": 2.26,
      "product_id": "19923123",
      "sku": "sku1",
      "price": 3.5,
      "cost": 5,
      "unit": "Feet",
      "price_part_items": [
        {
          "name": "Option A",
          "price_part_name": "Material",
          "sku": "MAT-001",
          "price": 10,
          "cost": 5,
          "quantity": 2,
          "unit": "Each"
        }
      ]
    },
    {
      "name": "product2",
      "description": "Custom item description",
      "quantity": 1,
      "total": 128.98,
      "cost": 200
    }
  ],
  "subtotal": 131.24,
  "discount": -31.24,
  "discount_description": "discount reduce",
  "markup": 100,
  "markup_description": "extra fee",
  "taxes": [
    {
      "name": "a",
      "total": 20,
      "tax_rate": 8.0
    },
    {
      "name": "b",
      "total": 30,
      "tax_rate": 12.0
    }
  ],
  "total": 250,
  "drawing_version_id": "36029621652695100"
}

Query Parameters

Parameter	Type	In	Description
drawing_version_id	String (optional)	query	The ID of the drawing version. A version of another drawing returns 404.

Note

If the drawing_version_id is passed, the drawing line items data of the specified version will be returned. If not, the data of the latest version will be returned by default.

Response Schema

Name	Type	Description
line_items	List[LineItem]	All product line items
subtotal	Number	Sum of the line item totals (after per-product adjustments) and custom items, before order-level markups, discounts and taxes. If your organization’s minimum job price is higher, this is the minimum price
discount	Number	The total order-level discount, as a negative number (0 if none)
discount_description	String?	Description of the discount; null if there is no discount. Empty when several discounts, or a fixed-amount discount, are combined
markup	Number	The total amount of markup added (0 if none)
markup_description	String?	Description of the first markup; null if there is no markup
taxes	List[TaxItem]	All taxes applied
total	Number	The grand total after markups, discounts and taxes
drawing_version_id	String	The version id of the drawing

LineItem

Name	Type	Description
name	String	The name of the product
description	String?	The description of the product (or of the custom price item)
quantity	Number	The quantity of the product (not rounded). Always 1 for custom price items
total	Number	Item total after discounts and markup applied
price	Number?	Item total before discounts and markup applied; not provided for custom price items
cost	Number	Total cost of the line (unit cost × quantity)
sku	String?	The stock keeping unit of the product (may be null); not provided for custom price items
unit	String?	The unit of measurement for the product’s quantity, e.g. Feet, SQ_Feet, CU_Yards, Each, Hour, or a custom unit name; not provided for custom price items
product_id	String?	The ID of the current version of the product; not provided for custom price items
price_part_items	List[PricePartItem]?	Detail of price part items; not provided for custom price items

PricePartItem

Name	Type	Description
name	String	The name of price part option
price_part_name	String	The name of the price part
sku	String?	The sku of price part option (may be null)
price	Number	The total price of price part option
cost	Number	The total cost of price part option
quantity	Number	The total quantity of price part option
unit	String	The final unit of price part option

TaxItem

Name	Type	Description
name	String	The name of the tax
total	Number	The total amount of tax
tax_rate	Number	The tax rate in percent (e.g. 8.0 means 8%)

Get Excluded Line items

Get line items that are not included in the proposal by drawing id.

GET https://api.arcsite.com/v1/drawings/<id>/excluded_line_items

cURL

curl "https://api.arcsite.com/v1/drawings/<ID>/excluded_line_items" \
  -H "Authorization: Bearer your_api_token_here"

JavaScript

const response = await fetch("https://api.arcsite.com/v1/drawings/<ID>/excluded_line_items", {
  headers: {
    Authorization: "Bearer your_api_token_here",
  },
});
const data = await response.json();

Python

import requests

response = requests.get(
    "https://api.arcsite.com/v1/drawings/<ID>/excluded_line_items",
    headers={"Authorization": "Bearer your_api_token_here"},
)
data = response.json()

Query Parameters

Parameter	Type	In	Description
drawing_version_id	String (optional)	query	The ID of the drawing version. A version of another drawing returns 404.

Note

If the drawing_version_id is passed, the excluded line items data of the specified version will be returned. If not, the data of the latest version will be returned by default.

The response schema is identical to Get Proposal Line Items, where line_items contains only the items not included in the proposal. Custom price items are never part of this response, and subtotal, markup, discount, taxes and total are calculated over the excluded items only.

Get Takeoff Line items

Get takeoff items by drawing id. Only items included in the proposal are returned; see Get Excluded Line Items for the others.

GET https://api.arcsite.com/v1/drawings/<id>/takeoff_items

cURL

curl "https://api.arcsite.com/v1/drawings/<ID>/takeoff_items" \
  -H "Authorization: Bearer your_api_token_here"

JavaScript

const response = await fetch("https://api.arcsite.com/v1/drawings/<ID>/takeoff_items", {
  headers: {
    Authorization: "Bearer your_api_token_here",
  },
});
const data = await response.json();

Python

import requests

response = requests.get(
    "https://api.arcsite.com/v1/drawings/<ID>/takeoff_items",
    headers={"Authorization": "Bearer your_api_token_here"},
)
data = response.json()

Response

{
  "takeoff_items": [
    {
      "name": "with attributes",
      "quantity": 300,
      "unit": "Amount",
      "sku": "GM-100",
      "product_id": "287386775856064026",
      "items": [
        {
          "quantity": 1,
          "unit": "Each",
          "sequence_number": "1",
          "attributes": [
            {
              "name": "cc",
              "value": null,
              "type": "TEXT"
            },
            {
              "name": "d",
              "value": "Some text",
              "type": "TEXT"
            },
            {
              "name": "yesno",
              "value": true,
              "type": "CHECKBOX"
            },
            {
              "name": "photo",
              "value": [
                "https://files.example.com/photos/F4AF22A9-F011-4214-8729-CAF3F1F9D9F6.jpg?Expires=1700000000&Signature=EXAMPLE&Key-Pair-Id=EXAMPLEKEYPAIR"
              ],
              "type": "PHOTO"
            },
            {
              "name": "start_date",
              "value": "2024-03-25T09:36:42.031Z",
              "type": "DATE"
            }
          ]
        }
      ]
    }
  ]
}

Query Parameters

Parameter	Type	In	Description
drawing_version_id	String (optional)	query	The ID of the drawing version. A version of another drawing returns 404.

Note

If the drawing_version_id is passed, the drawing takeoff items data of the specified version will be returned. If not, the data of the latest version will be returned by default.

Response Schema

Name	Type	Description
takeoff_items	List[TakeoffItemByProduct]	Takeoff items group by product

TakeoffItemByProduct

Name	Type	Description
name	String	The name of the product
quantity	Number	The total quantity of the product
unit	String	The unit of measurement for the product’s quantity
sku	String?	The stock keeping unit of the product (may be null)
product_id	String	The ID of the product
items	List[TakeoffItem]	The takeoff items of the product

TakeoffItem

Name	Type	Description
quantity	Number	For geometric products, we use the quantity shown in the drawing. For shape or virtual products, the quantity is one, unless the product applies a quantity modifier, in which case the modified quantity and unit are returned.
sequence_number	String	Sequence number of the shape on the drawing; an empty string for non-shape products
unit	String	The input unit defined by the product
attributes	List[TakeoffAttribute]	The attributes of the item

TakeoffAttribute

Name	Type	Description
name	String	The name of the attribute
type	String	The type of the attribute. Can be one of “TEXT”, “PHOTO”, “CHECKBOX”, or “DATE”. Paragraph and dropdown attributes are reported as “TEXT”.
value	String, List[String], Boolean	(optional) The value of the attribute, or null when it isn’t set. The type of this field depends on the type field:
		- If type is “TEXT”, value is a string, or a list of strings for a multi-select dropdown.
		- If type is “PHOTO”, value is a list of photo URLs (an empty list when there are none). The URLs expire in 24 hours.
		- If type is “CHECKBOX”, value is a boolean.
		- If type is “DATE”, value is a string in ISO format.
